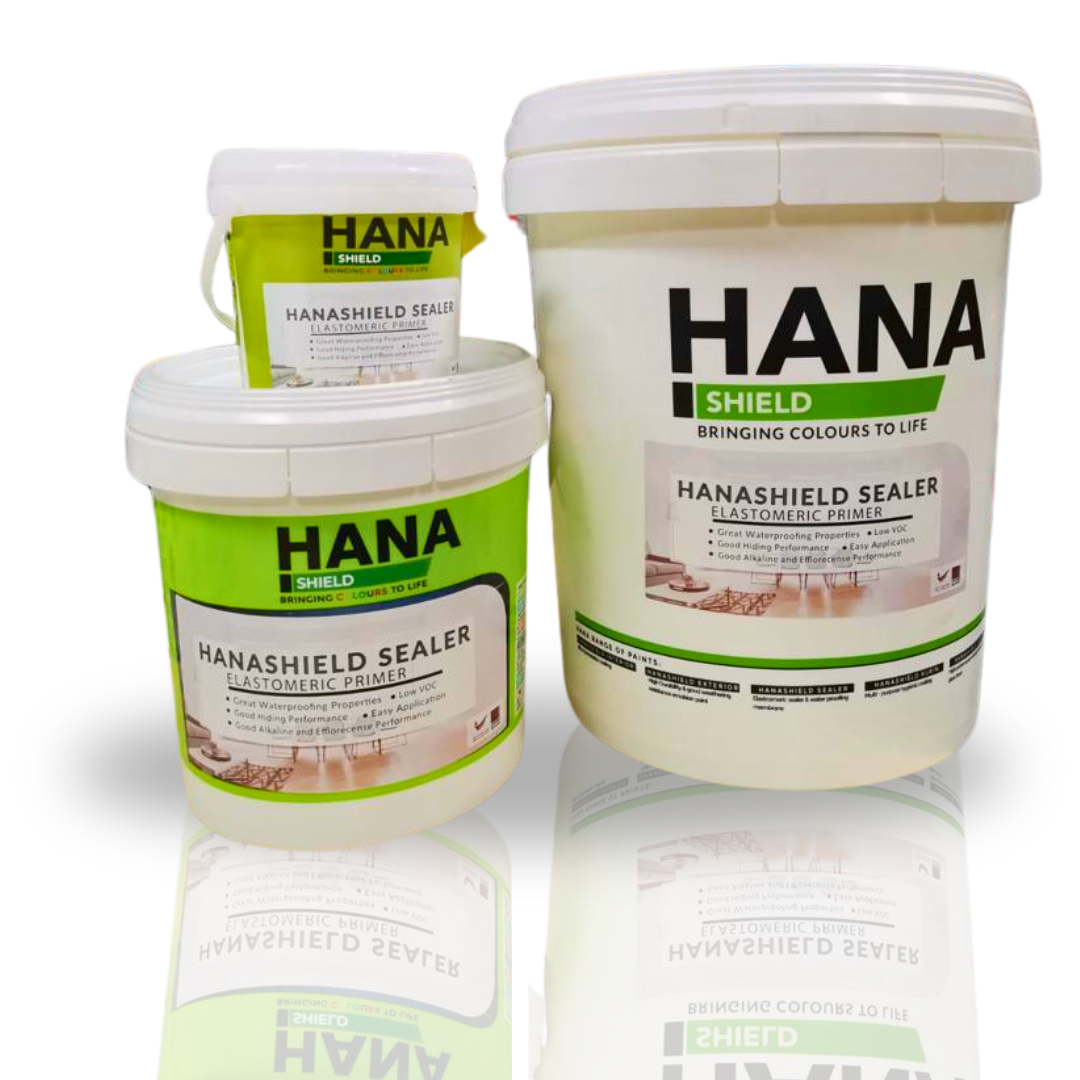

Hanashield Elastomeric Sealer
$17.00 – $100.00
Hanashield Elastomeric Sealer is a water-proofing sealant made of acrylic elastomer that prevents further water penetration into the substrate.
- Additional information
- Description
- Features
- Typical Uses
- Physical Data
- Application Data
- Application Procedure
- Condition of Application
- Surface Preparation
- Safety Precaution & Clean-Up
- Disclaimer & Limited Warranty
- Need Help?
- Reviews (0)
Description
Hanashield Elastomeric Sealer is a premium waterproofing and sealer membrane based on a 100% acrylic elastomeric polymer system with excellent flexibility, adhesion, and protection properties to protect concrete and masonry surfaces. It is a highly flexible coating to cover hairline cracks and has excellent adhesion to seal the pores on the concrete to prevent further water penetration into the substrate. It is a green and eco-friendly product without any harmful substances.
Features
- Good Water Resistance.
- Easy to use spray, brush, roller
- Cracks bridging and excellent adhesion.
- Alkaline resistance and efflorescence resistance.
- Flexible and durable coating
- Environmental friendly product and free from harmful chemicals such APEO & formaldehyde.
Typical Uses
Premium elastomeric sealer and waterproofing system for all masonry surfaces such as brickwork, concrete, plaster, and textured surfaces. Suitable for use as eco-friendly concrete wall sealer and waterproofing roofing.
Physical Data
Color | : | As specified |
Volume Solid | : | 50 +/- 2% |
Finish | : | Matt finish |
Solid Content | : | 60 +/- 2% |
VOC(as supplied) | : | Near zero |
Shelf Life @250C / indoor | : | 24 months |
Typical Thickness: 60 ~ 100µ dried film.
Drying Time(at Dry Film Thickness 60µ) | Temperature | 100C | 200C | 300C | |
Surface Dry | 3 hrs | 2 hrs | 1 hrs | ||
Hard Dry | 6 hrs | 4 hrs | 3 hrs | ||
Painting interval: | Minimum | 5 hrs | 3 hrs | 2 hrs | |
Max. (self) | – | – | – | ||
Pot LIfe | – | – | – | ||
Theoretical coverage (at DFT 60- 100µ) |
0.120~0.20L/m2 ; 8.3 ~ 5.0 m2/L | ||||
Service temperature | -20 to 120 0C (dry) |
Application Data
Mixing ratio: not applicable
Application Method: airless spray, roller, brush
Mixing Procedure : | Hand stir for at least two minutes or until homogeneous. |
Drying schedule : | Drying by water evaporation. Higher film thickness, insufficient ventilation, or lower temperature will require longer drying time. |
This product requires the substrate temperature to be above the dew point ( + 3~5 0 C).
Application Procedure
Mix properly the paint before use.
- Flush equipment with water before use.
- Mix the paint thoroughly until homogeneous.
- Thin with water only if necessary for workability.
- When applying by conventional spray, use adequate air pressure and volume for proper atomization.
- Apply a wet coat in even parallel passes, and overlap 50% to avoid holidays and pinholes.
- Excessive thickness can prolong drying and sagging.
- Clean up all equipment with water immediately after use.
- Keep containers tightly close and store them in a proper storage area.
Condition of Application
Use a brush or roller with a 1/8″ nap. Apply at a sufficient thickness and avoid repeating rolling to have good leveling.
Temperature | : | Min 5 0 C ; Max 50 0 C | ||
Humidity | : | Maximum 85 % R.H. | ||
For Airless spray:- | ||||
Tip Size | : | Graco 615, 715 or equivalent | ||
Paint Output pressure | : | 10.7 – 13.8 MPa (g) | ||
Viscosity | : | 1.5 ~ 2.0 Pa.s | ||
Thinning | : | 0 – 10 % by volume | ||
Recommended Painting system | : | 1)Use as a sealer; 1-2 coats depending on concrete condition)
2)Use as patching material to cover hairline cracks: 2 -3 coats depending on substrate condition without thinning |
Surface Preparation
General : |
Surfaces must be clean and dry, and all contaminants like dirt, dust, and oil must be removed by appropriate methods to ensure good adhesion.
|
Moisture |
Ensure the surface is dry before painting. Moisture must be < 10% before application
|
Concrete Structure |
Concrete must be cured for at least 30 days prior to coating and must be free from moisture as much as possible. The surface must be cleaned, and free from any contaminant, laitance, and loose film. Broom cleaning, vacuum cleaning, air blast cleaning, and steam and water cleaning are suitable as outlined in ASTM D4258.
|
Contaminants |
Remove dust and foreign matter by cleaning with a damp cloth. Remove oil or grease using mild detergent and allow the surface to dry.
|
Safety Precaution & Clean-Up
Safety : |
Read and follow the material safety data sheet (MSDS) before use. Employ normal safety precautions. Put on necessary personal protection equipment when handling and using this product. |
Ventilation : | when working in a confined workplace, thorough air ventilation must be used during and after application until the coating is cured. The ventilation system should be effective to prevent solvent vapor concentration from reaching a lower explosion limit for the product and to ensure exposure limit to the personnel is below the permissible exposure limit. |
Caution : | All electrical equipment and installations should be made and properly grounded. In areas where explosion hazards exist, workmen should be used non-ferrous tools and conductive and non-sparkling shoes. |
Clean-up : | Use Hana Paint polyurethane thinner (Hana Thinner U) or hydrocarbon solvent for cleaning. Observe safety precautions when using the solvents. In case of spillage, absorb and dispose of the material and used container according to local required regulations or through a licensed waste collector. |
Disclaimer & Limited Warranty
Disclaimer
Data, specifications, directions, and recommendations given in this data sheet represent test results or experience obtained under controlled or specially defined circumstances. Their accuracy, completeness, or appropriateness under the actual conditions of any intended use is not guaranteed and must be determined by the user. The products are delivered and any technical assistance is given subject to our GENERAL CONDITIONS OF SALE, DELIVERY, AND SERVICE and, unless otherwise expressly agreed in writing, manufacturer and seller assume no liability in excess of that stated therein for results obtained, injury, direct or consequential damage incurred from the use as recommended above or otherwise.
Limited Warranty
Whilst we endeavor to ensure that all advice we give about this product is correct and manufactured according to the standard quality control system, however, we have no control over either the quality or condition of the substrate or many other factors affecting the use and application of the product. Therefore, unless we specifically agree in writing to do so, we do not accept any liability whatsoever or howsoever arising for the performance of the product or for any loss or damage arising out of the use of this product.
